Wns sanoat foydalanish tabiiy gaz Lpg bug 'qozoni

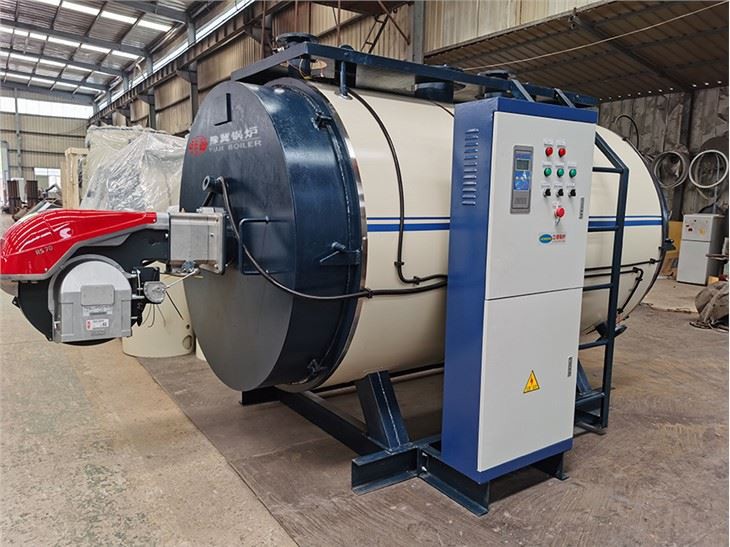

WNS neft gazida ishlaydigan issiq suvli qozon
Model: WNS seriyasi
Nominal quvvat: 1.0MW-14MW
Bug 'bosimi: 0.4Mpa ~ 2.5Mpa (mijozning talabiga binoan)
Yoqilg'i: Tabiiy gaz, LPG, LNG, CNG, Biogaz, Shahar gazi, dizel, og'ir neft, neft va gaz.

Mahsulotni tanishtirish

Mahsulotni tanishtirish

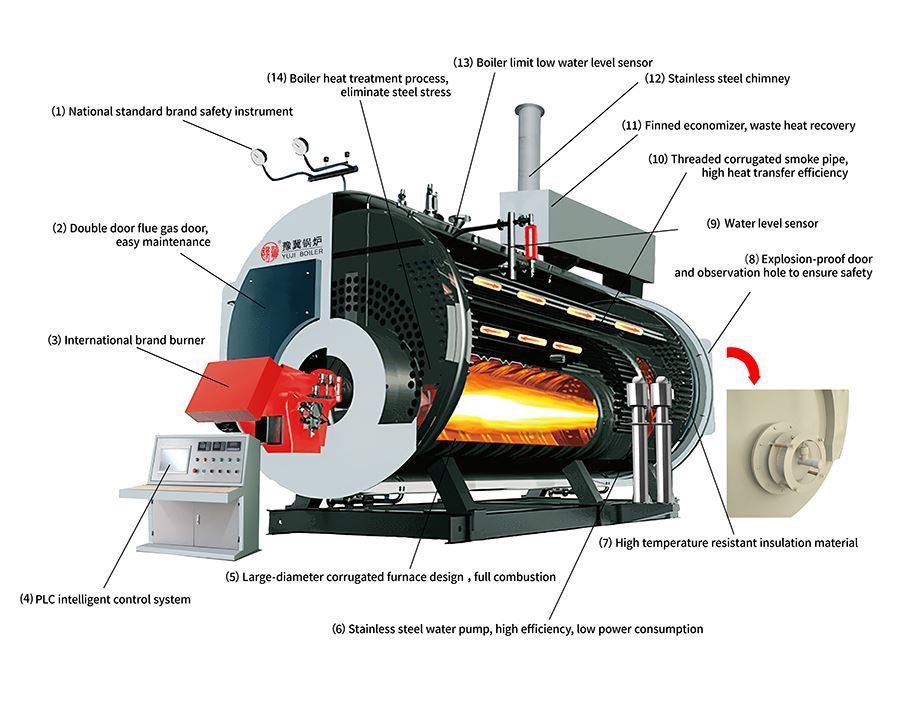

Ikkita yonilg'i bilan ishlaydigan issiq suv qozonlari - bu xavfsiz, samarali va to'liq avtomatik isitish uskunalari. Gaz bilan ishlaydigan issiq suvli qozon gorizontal, yong'in trubkasi, uch o'tkazgichli, nam tuzilishga ega, yuqori samaradorlik, kichik o'lchamli, oson o'rnatish, oddiy ishlash, barqaror ishlash va keng moslashuvchanlik xususiyatlariga ega.

Mahsulot tafsilotlari

20200707162608ab45918b93b64d1ea7935ad543016aad

Parametrlar

WNS sanoat bug 'qozoni

Model	Nominal bug'lanish quvvati (t / s)	Nominal bug ' bosim (Mpa)	Bug 'harorati (℃)	Issiqlik samaradorligi (％)	Yoqilg'i sarfi		Hajmi (m)	Og'irligi (t)
Model	Nominal bug'lanish quvvati (t / s)	Nominal bug ' bosim (Mpa)	Bug 'harorati (℃)	Issiqlik samaradorligi (％)	Yog ' (kg / soat)	Gaz (Nm³ / s)	Hajmi (m)	Og'irligi (t)
WNS1-0.7 / 1.0-Y (Q)	1	0.7/1.0	194	≥98.36	61	73	3.2×1.9×2.2	4.9
WNS2-1.0 / 1.25-Y (Q)	2	1.0/1.25	194	≥98.36	121	145	4.2×2.3×2.5	8
WNS3-1.0 / 1.25-Y (Q)	3	1.0/1.25	194	≥98.36	182	217	4.5×2.1×2.4	9
WNS4-1.0 / 1.25-Y (Q)	4	1.0/1.25	194	≥98.36	243	289	5.0×2.3×2.6	11
WNS6-1.25 / 1.6-Y (Q)	6	1.25/1.6	194	≥98.36	367	435	5.4×2.4×2.7	18.6
WNS10-1.25 / 1.6-Y (Q)	10	1.25/1.6	194	≥98.36	601	735	6.3×2.7×3.2	20.5
WNS15-1.25 / 1.6-Y (Q)	15	1.25/1.6	194	≥98.36	906	1101	8.9×3.4×3.6	42
WNS20-1.25 / 1.6-Y (Q)	20	1.25/1.6	194	≥98.36	1211	1467	7.8×3.6×4.0	52
