WNS gaz / moyli konteyner xonasi bug 'qozon

WNS gaz / moyli idish xonasi bug 'qozoni
Model: WNS seriyali
Bug 'sig'imi: 0,5T / H-20T / H Issiq suv: 0,35MW-14MV
Bug 'bosimi: 0.4MPa ~ 2.5MPa (kerak bo'lganda ixtiyoriy)
Yoqilg'i: tabiiy gaz, LPG, LNG, CNG, Biogaz, shahar gazi, dizel, og'ir neft, neft va gaz.
Ilova: Yog 'maydoni, dala jihozlarini isitish, qurilish maydonchalarini isitish, tashqi isitish va boshqa maxsus ehtiyojlar.

Mahsulotni tanishtirish

Kirish

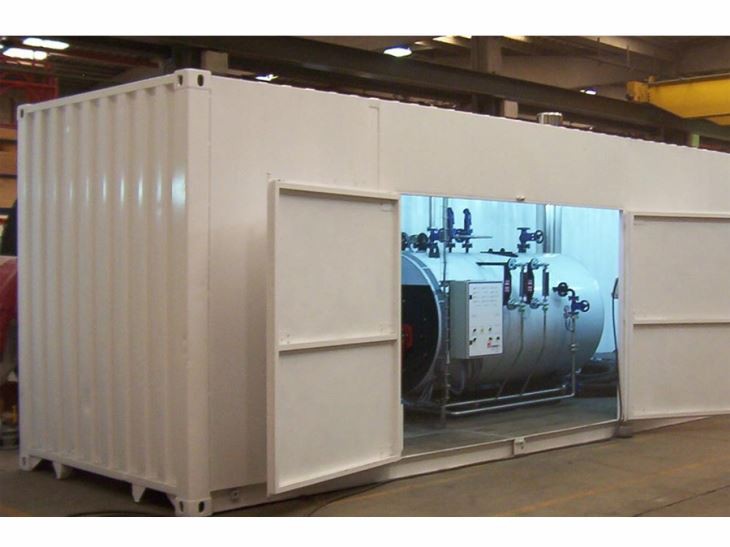

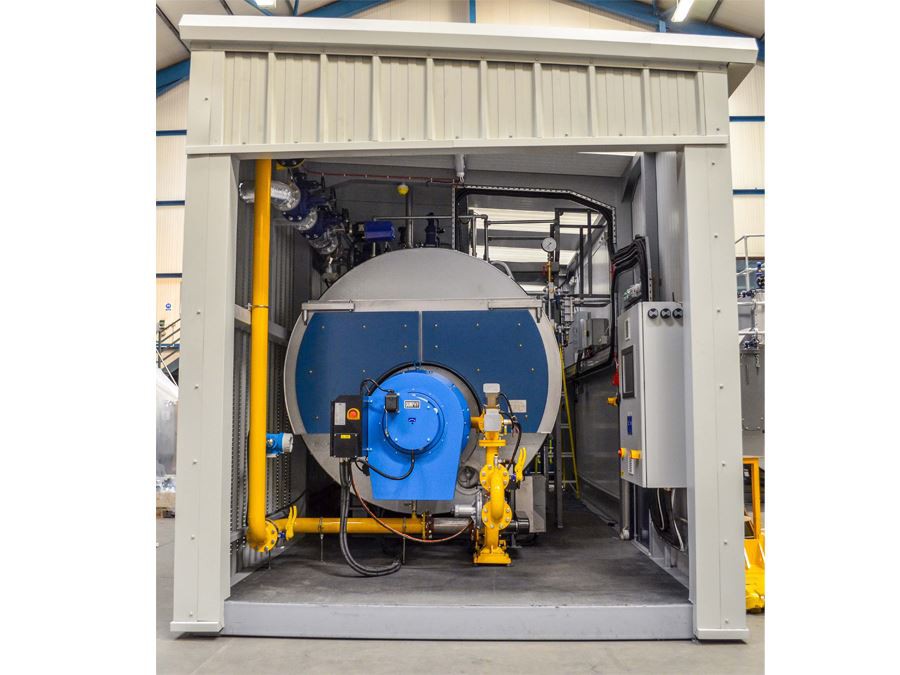

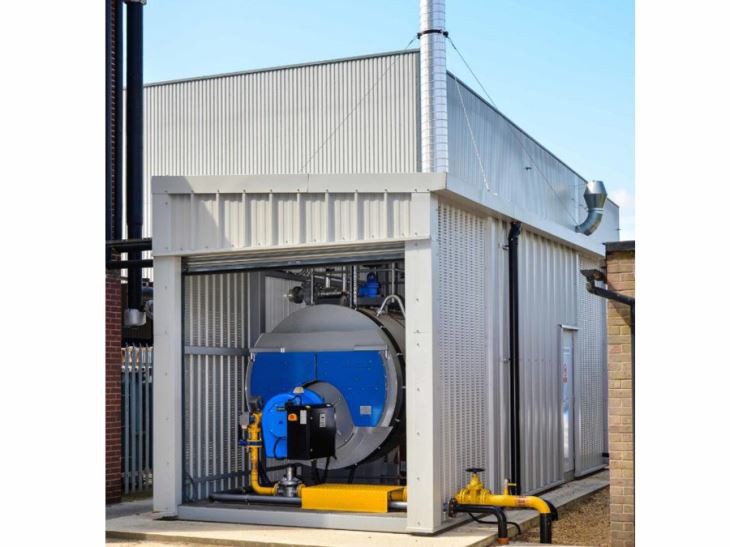

WNS gaz / moyli idishdagi qozonxona - bu xavfsiz, samarali va avtomatik isitish uskunalari. Yog 'yoqiladigan idishdagi qozonxonada alohida bug' qozonxonasi mavjud. Konteynerli qozon gorizontal, o't o'chirish trubkasi, uchta qaytish, ho'l orqa tuzilish, yuqori samaradorlik, kichik hajm, qulay o'rnatish, sodda ishlash, barqaror ishlash, keng dastur oralig'i.

Muhim maslahatlar: biz siz uchun qozonni zarur bo'lganda yoqilg'i, bug 'quvvati va bug' bosimiga qarab sozlashimiz mumkin.

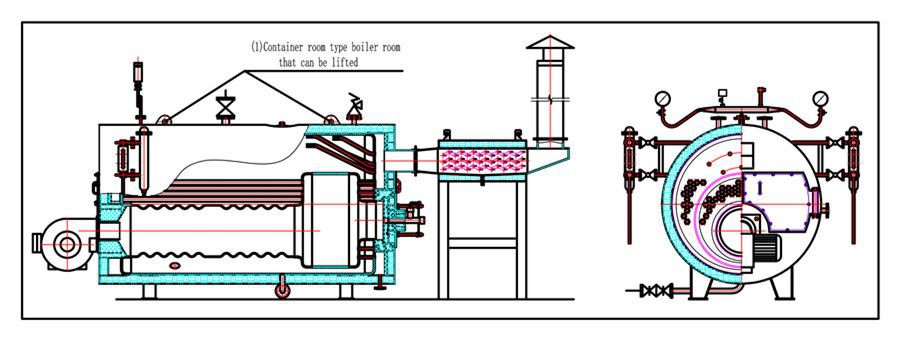

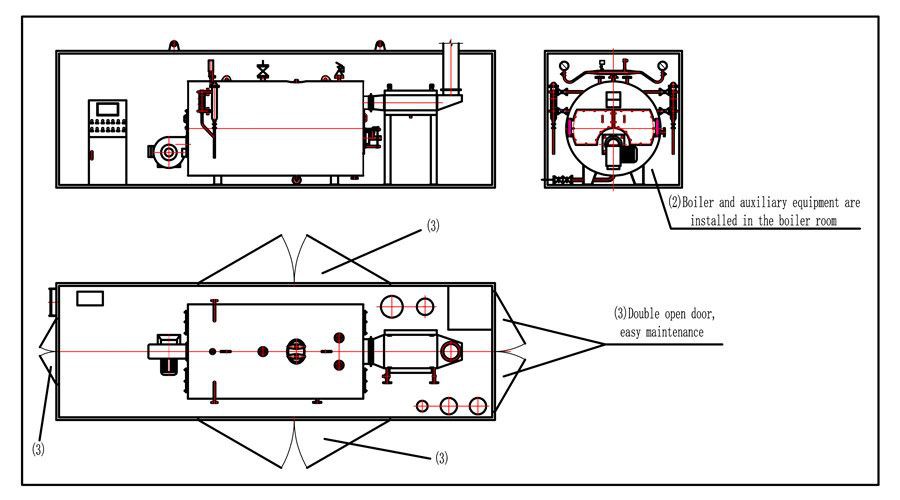

Tuzilish sxemasi

Parametrlar

Bug 'qozonining parametrlari

Model	Baholangan bug'lanish sig'imi (t / soat)	Baholangan bug ' bosim (Mpa)	Bug 'harorati (℃）	Issiqlik samaradorligi (％)	Yoqilg'i iste'moli		O'lchov (m)	Og'irligi (t)
Model	Baholangan bug'lanish sig'imi (t / soat)	Baholangan bug ' bosim (Mpa)	Bug 'harorati (℃）	Issiqlik samaradorligi (％)	Yog ' (kg / soat)	Gaz (Nm³ / soat)	O'lchov (m)	Og'irligi (t)
WNS1-0.7 / 1.0-Y (Q)	1	0.7/1.0	194	≥98.36	61	73	3.2×1.9×2.2	4.9
WNS2-1.0 / 1.25-Y (Q)	2	1.0/1.25	194	≥98.36	121	145	4.2×2.3×2.5	8
WNS3-1.0 / 1.25-Y (Q)	3	1.0/1.25	194	≥98.36	182	217	4.5×2.1×2.4	9
WNS4-1.0 / 1.25-Y (Q)	4	1.0/1.25	194	≥98.36	243	289	5.0×2.3×2.6	11
WNS6-1.25 / 1.6-Y (Q)	6	1.25/1.6	194	≥98.36	367	435	5.4×2.4×2.7	18.6
WNS10-1.25 / 1.6-Y (Q)	10	1.25/1.6	194	≥98.36	601	735	6.3×2.7×3.2	20.5
WNS15-1.25 / 1.6-Y (Q)	15	1.25/1.6	194	≥98.36	906	1101	8.9×3.4×3.6	42
WNS20-1.25 / 1.6-Y (Q)	20	1.25/1.6	194	≥98.36	1211	1467	7.8×3.6×4.0	52

Issiq suv qozonining parametrlari

Model	Nominal quvvat (MVt)	Baholangan bug ' bosim (Mpa)	Issiqlik samaradorligi (％)	Yoqilg'i iste'moli		O'lchov (m)	Og'irligi (t)
Model	Nominal quvvat (MVt)	Baholangan bug ' bosim (Mpa)	Issiqlik samaradorligi (％)	Yog ' (kg / soat)	Gaz (Nm³ / soat)	O'lchov (m)	Og'irligi (t)
WNS 0.35-95 / 70-Y (Q)	0.35	1.25	≥98.77	31	37	2.94×1.45×1.7	2.8
WNS 0.7-95 / 70-Y (Q)	0.7	1.25	≥98.77	62	74	3.19×1.88×2.16	5
WNS 1.4-115 / 70-Y (Q)	1.4	1.25	≥98.77	119	146	4.13×2.24×2.42	8
WNS 2.8-115 / 70-Y (Q)	2.8	1.25	≥98.77	237	288	4.92×2.25×2.6	10.5
WNS 4.2-115 / 70-Y (Q)	4.2	1.25	≥98.77	357	434	5.4×2.4×2.65	17.8
WNS 7-115 / 70-Y (Q)	7	1.25	≥98.77	602	729	6.28×2.64×3.17	19
WNS 10.5-115 / 70-Y (Q)	10.5	1.25	≥98.77	903	1080	7.8×3.39×3.54	35
WNS 14-115 / 70-Y (Q)	14	1.25	≥98.77	1203	1450	9.12×4.4×4.1	48
